Description

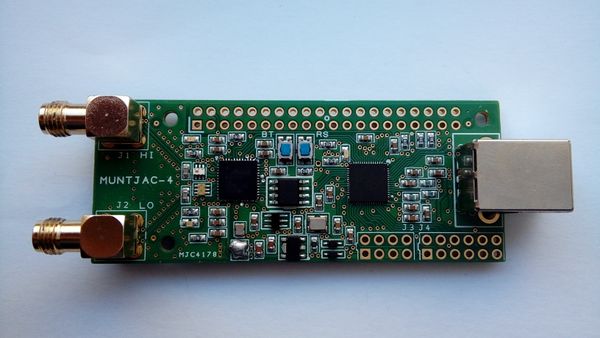

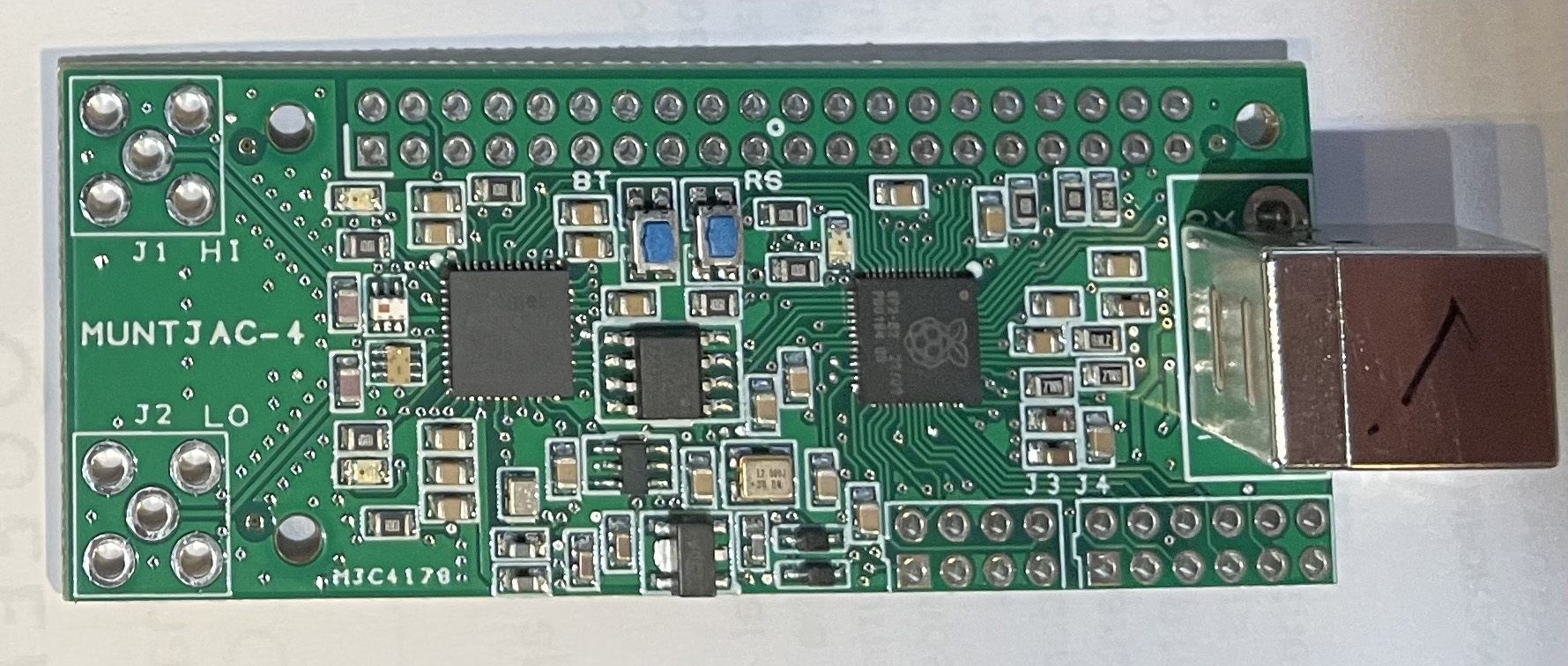

The Muntjac SDR was designed by Brian G4EWJ based on the same dual-band AT86RF215 RF chip as the commercially available CaribouLite SDR.
It is a transmit-only SDR for DVB-S2 DATV on 13cm (QO-100) and 70cm, which uses an RP2040 micro-controller, as used on the Raspberry Pi Pico, to provide a USB interface to the Portsdown 4.
It is sold as a development platform and requires additional components to be soldered to the PCB and protecting within a box. It is currently only supported by the Portsdown 4 transmitter; volunteers to integrate it with other DATV transmitters would be welcome.
For further details see https://wiki.batc.org.uk/The_Muntjac_SDR
Now available for orders from the EU and the Rest of the World
